  • 隔爆磁致伸缩传感器
  • 隔爆磁致伸缩传感器

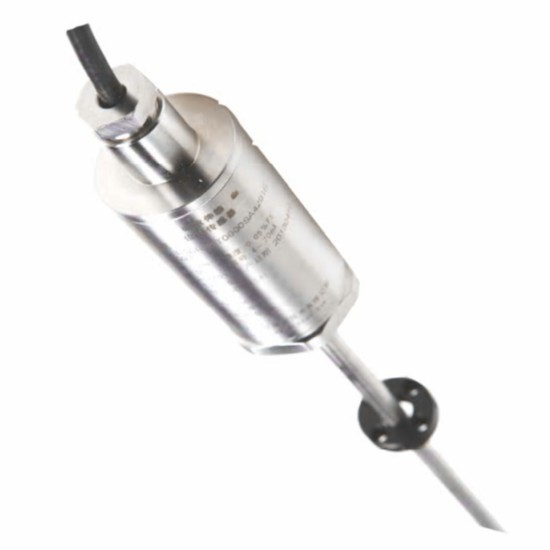

隔爆磁致伸缩传感器

产品展示, 磁致伸缩位移传感器 | 2024年8月30日 10:05

防爆外壳使用于隔爆系列磁致伸缩传感器的模拟量,ModBus输出,以及其它的数字信号。

  产品特点

  ●抗干扰能力强

  ●2个位置同时测量,可同时检测液面和界面

  ●多种模拟信号输出方式可选

  ●具有输入电源方向极性保护功能

  ●防护等级IP67

  ●工作电流低至40mA

  ●受温度变化时间漂移影响小

  ●柔性结构适合大型储罐长量程液位测量

  XH型传感器已经获得国家防爆电气产品质量监督检验中心(China National Quality Supervision and Test Center forExplosion Protected Electrial Products )颁发的防爆合格证书,证书编号:CCRI 24.8193。

  通过防爆认证的传感器,可以在爆炸性气体环境中使用。

  防爆外壳使用于防爆隔爆系列传感器的模拟量,ModBus输出,以及其它的数字信号。传感器所有检验项目包括:1.机械检查; 2.温度试验; 3. IP试验; 4、外壳耐压试验。所有项目符合标准的规定,外壳由不锈钢316L制成,在一些非认证的恶劣环境下,也可以使用。

  注意:安装前请仔细阅读使用说明书,严格按照使用说明书进行操作。

规格说明

参数规格
输入
测量数据位移/液位
测量范围50 –7650 mm
输出
模拟电流/电压
数字485/SSI/CAN/PROFIBUS等
精度
可调范围100%可调零点和满量程
分辨率无限(取决于控制器D/A与电源波动)
非线性度<满量程的± 0.02% (最小土 60 pm)
重复精度< 满量程的 ± 0.001% (最小 ± 2.5 pm)
更新时间<2 kHz
波动<满量程的0.01% F.S.
工作条件
磁铁速度任意
工作温度-40℃〜+ 80℃
湿度/露点湿度90%,不能结露
外管压力350 bar / 700 bar (峰值)
保护IP67
冲击指标100 g (单一冲击) / IEC 标准 68-2-27
振荡指标15 g / 100 – 2000 Hz / IEC 标准 68-2-6 (耐久性)
EMC 测试放射 EN 50081-1,抗扰 EN 50082-2, EN 61000-4-2/3/4/6,等级 3/4,A 类,CE 认证
结构,材料
电子头不锈钢 1.4301 / AISI 304
传感杆和法兰不锈钢 1.4301 / AISI 304
检测形式磁环,浮球
安装
安装位置位移:任意方位;液位测量:竖直安装
安装M18x1.5、M20x1.5 或用户定制
电气连接
接头选型直出电缆(PUR 电缆 3 x 2 x 0.25 mm²,Φ7.9 mm)
输入电压10V〜30VDC (-15 / +20%)
秏电量50 – 140 mA (按量程而定)
波动< 1 % 峰值
电器冲击量500 V (DC接地到机器接地)
产品认证
防爆类型隔爆Ex db IIC T6 Gb
